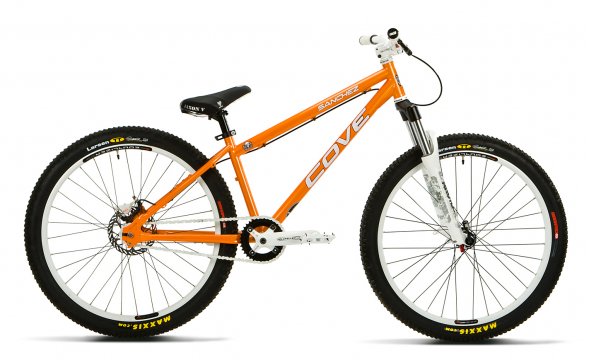

Like all Cove bikes, the Sanchez was designed by riders who walk the walk. The Sanchez was designed and refined by  jumpers for jumpers and proven on the dirt of the North Shore. Built burly and strong, the Sanchez comes with horizontal dropouts and adjustable rear disk mount which allows for a 26 inch rear wheel with disc or canti-lever brakes. The frame is built using custom 4130 Cromo with a geometry focused on mountain biking's street and dirt jump movement. If you're at home in the air, and tearing up the urban scene, the Sanchez is your ride.





Technical Note
- DJ
- 4130 butted cromoly frame
- massive downtube gusset
- adjustable disc mount
- horizontal dropouts







	Top Tube (horizontal)	Tope Tube (actual)	Chain Stay	BB Height	Seat Angle	Seat Tube	Head Angle	Head Tube	Wheel Base	Stand Over	Max. Fork Travel
one size	23.5″	22.45″	16.3″	13.1″	70	14″	67.5	4.6″	42.6″	27.5″	130

Front Derailleur	Seat Post	Seat Collar	Chain Line / Chain Guide	Chain Line (no guide)	BB Shell	Head Set
28.6 Top Pull Top Clamp	27.2mm	29.8mm	48mm-50mm	48mm-50mm	68mm	1.125″









Fork Rockshox Argyle 302 Coil
Headset FSA Pig
Stem Truvativ Hussefelt
Handbars Truvativ Holzfeller
Shifter Single-Speed
Brakes Avid Juicy Seven Rear Only
Grips Lock-on
Seatpost Truvativ Hussefelt
Saddle Cove WTB Dirt Jumper
Cranks Truvativ Stylo 1.1
Guide ----------------
Pedals
Front Der. ----------------
Rear Der. ----------------
Chain SRAM PC1 Singlespeed
Cassette DMR 16 tooth
Front Hub Cove 20mm
Front Rim Sun-Ringle Singletrack
Front Tire Maxxis Larsen TT
Rear Hub Shimano Deore
Rear Rim Sun-Ringle Singletrack
Rear Tire Maxxis Larsen TT
Kit Price 1176
